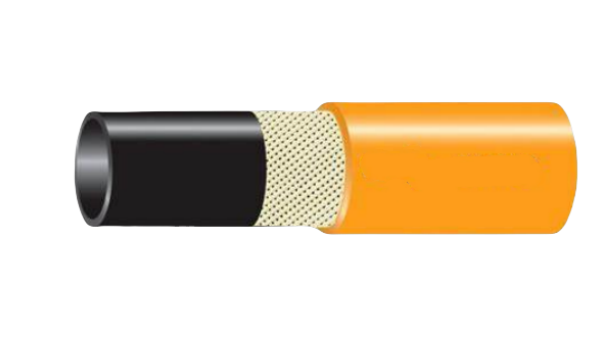

One or more layers of aramid fiber braided high-pressure hydraulic hose
Applicable standard: SAE 100R8 / DIN EN ISO 3949
Bestellnummer | DN | Grad | Innendurchmesser (inch) | Innendurchmesser(mm) | Außendurchmesser(mm) | Maximaler Betriebsdruck (bar) | Maximaler Betriebsdruck(psi) | Berstdruck bar | Minimaler Biegeradius (mm) |
---|
● Lining: Thermoplastic elastomer
● Reinforcement layer: one or more layers of aramid fiber weaving
● Cover: polyurethane, black, needled
● Continuous operating temperature: -40°C to +100°C, up to +70°C (air and water-based fluids)
● Maximum operating temperature: +121°C
● Pressurized hydraulic lines from 100 to 420 bar in the application
● Suitable for compact, high pressure, light weight, small length change. Suitable for hydraulic applications with higher wear resistance for petroleum, synthetic, or water-based fluids in hydraulic systems. Suitable for agricultural machinery, earthmoving, security, rescue, and material handling equipment, but also for industrial gases and other applications.
